TCH-14201 165° SERIES

Clip on Soft Closing Corner Hinges

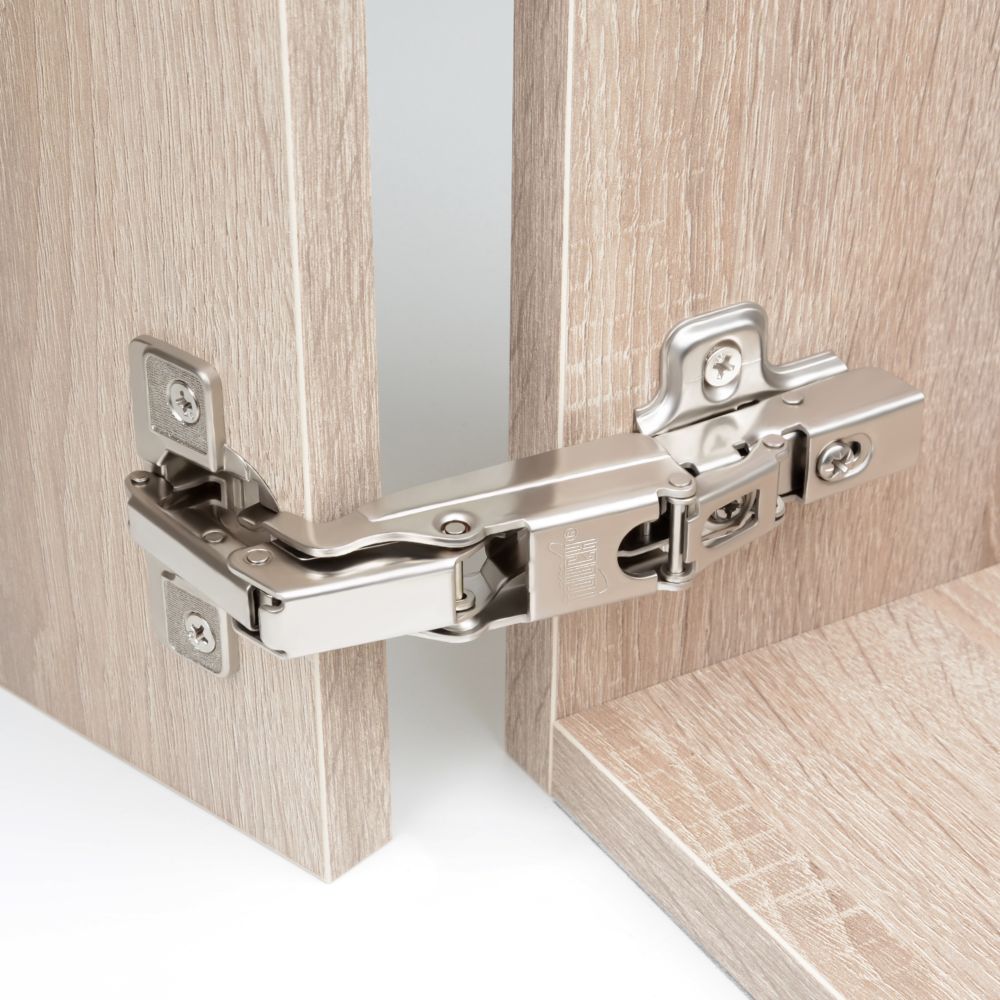

165° Degrees/B02 Mounting Plate

Opening: 165°
Plate type: Two holes
Height value: 0,3,5mm
Mounting dimension: 37mm

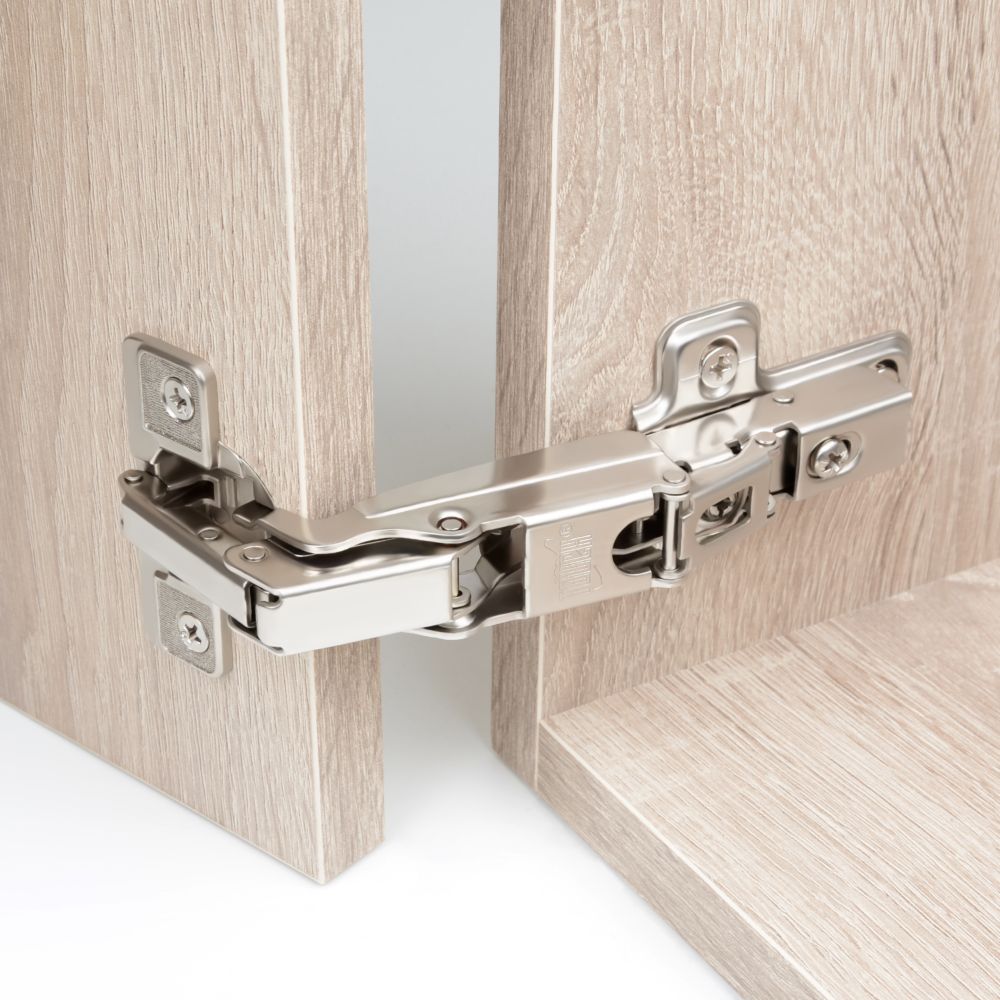

165° Degrees/B03 Mounting Plate

Opening: 165°
Plate type: Two holes
Height value: 0,3,5mm
Mounting dimension: 37-77mm

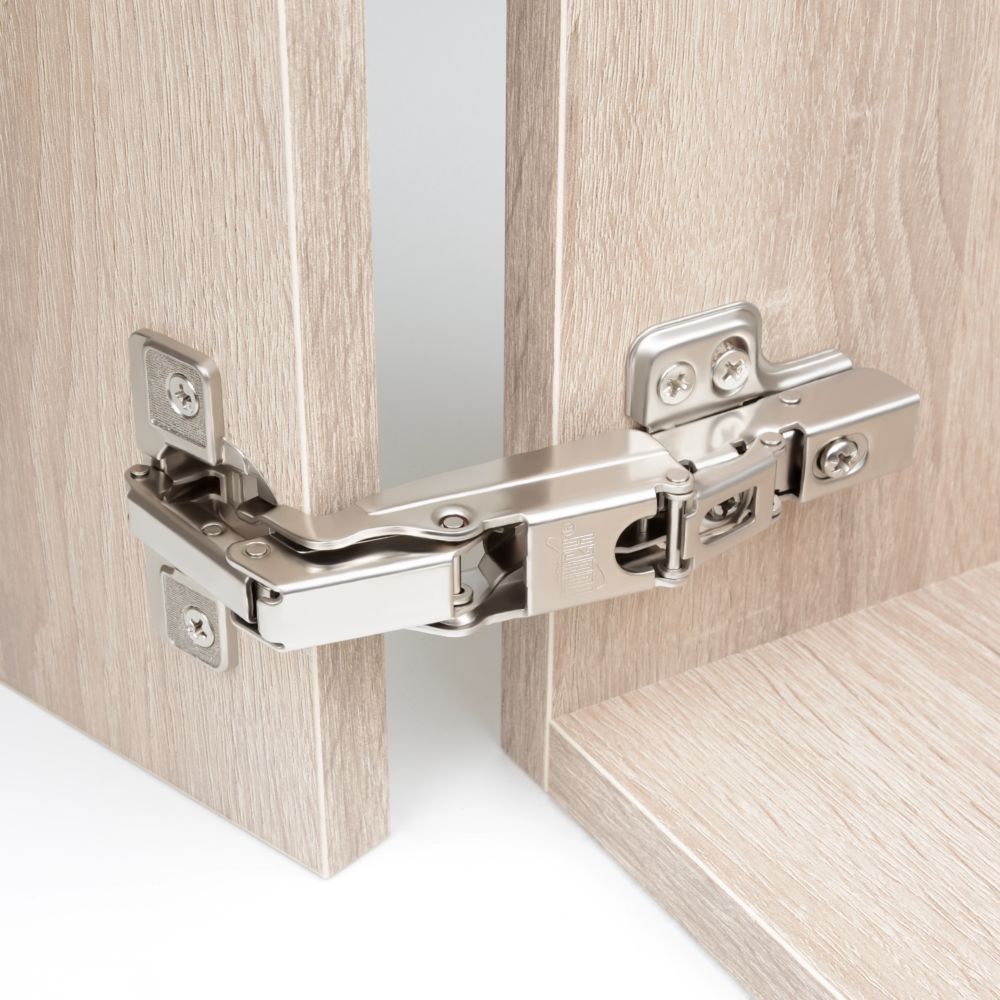

165° Degrees/B04 Mounting Plate

Opening: 165°
Plate type: Four holes
Height value: 0,3,5mm
Mounting dimension: 25-37mm

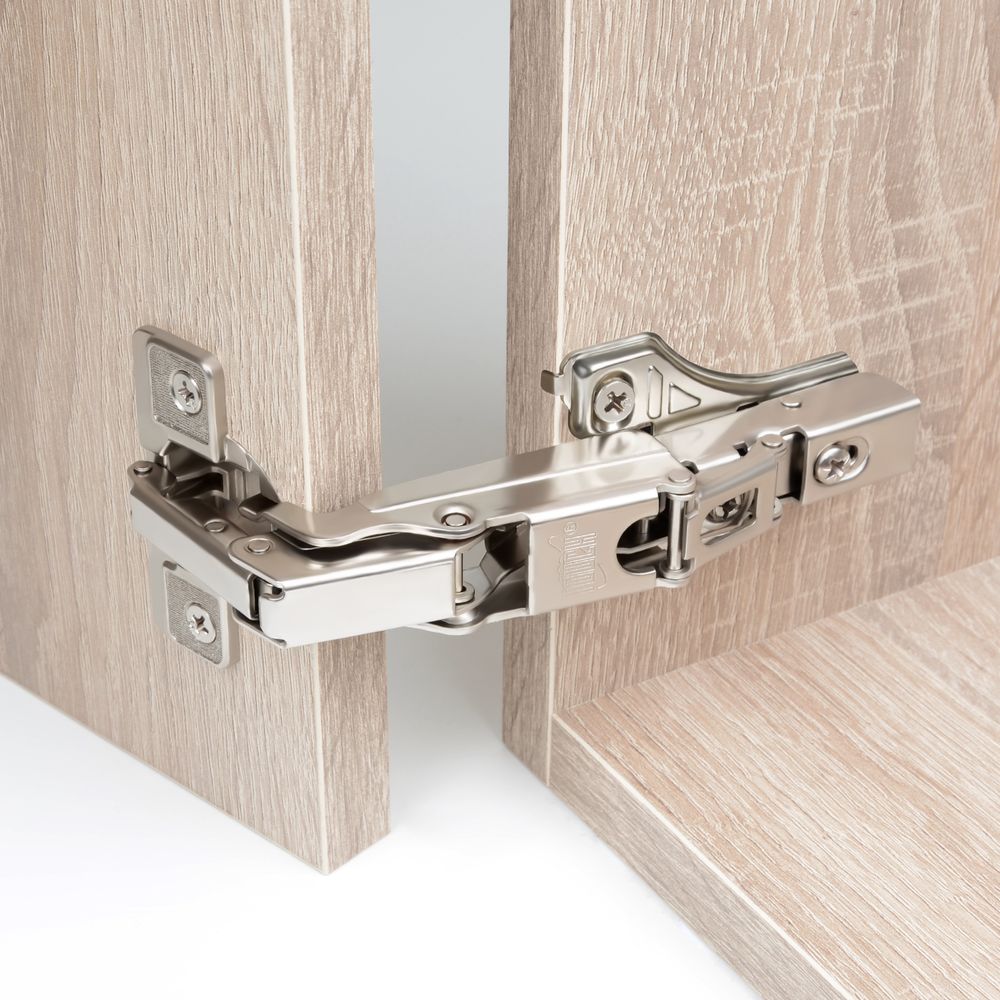

165° Degrees/F02 Mounting Plate

Opening: 165°
Plate type: Two holes face frame
Height value: 0,3,5mm
Mounting dimension: 10.5mm

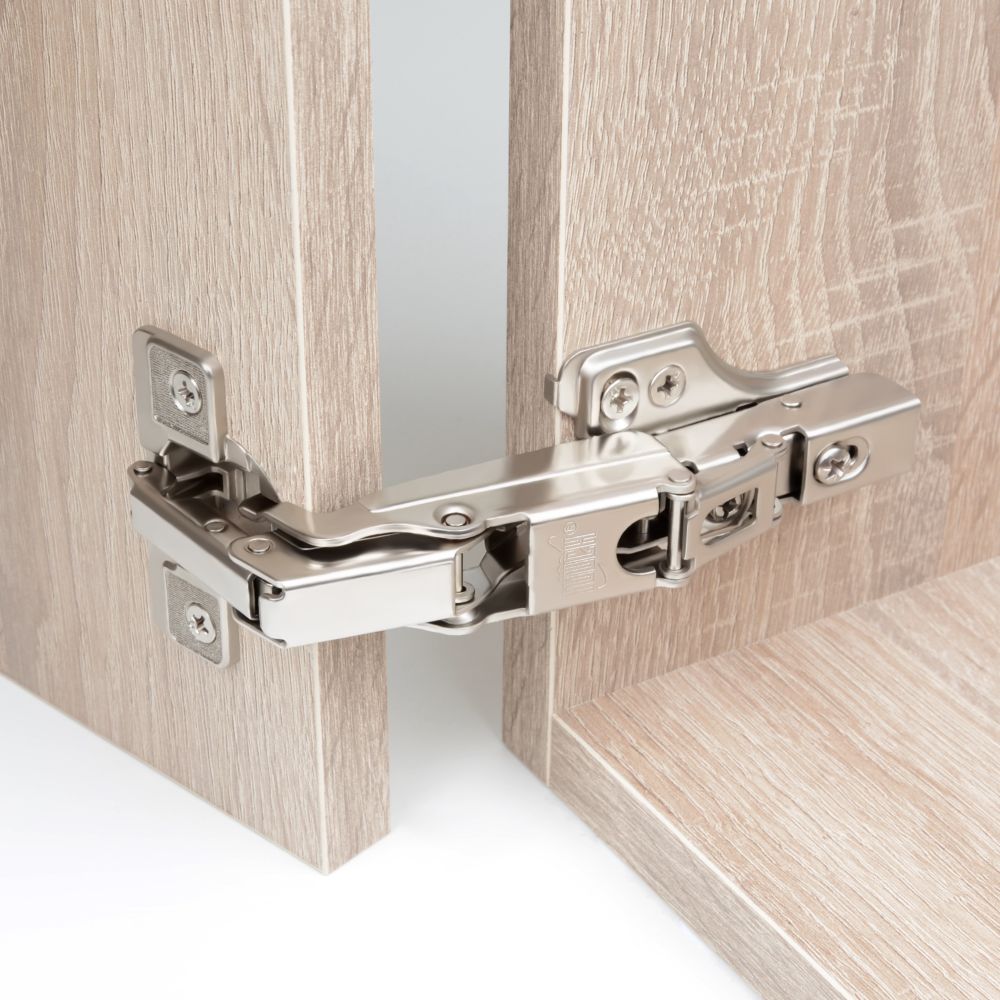

165° Degrees/F04 Mounting Plate

Opening: 165°
Plate type: Four holes face frame
Height value: 0,3,5mm
Mounting dimension: 10.5-23.5mm

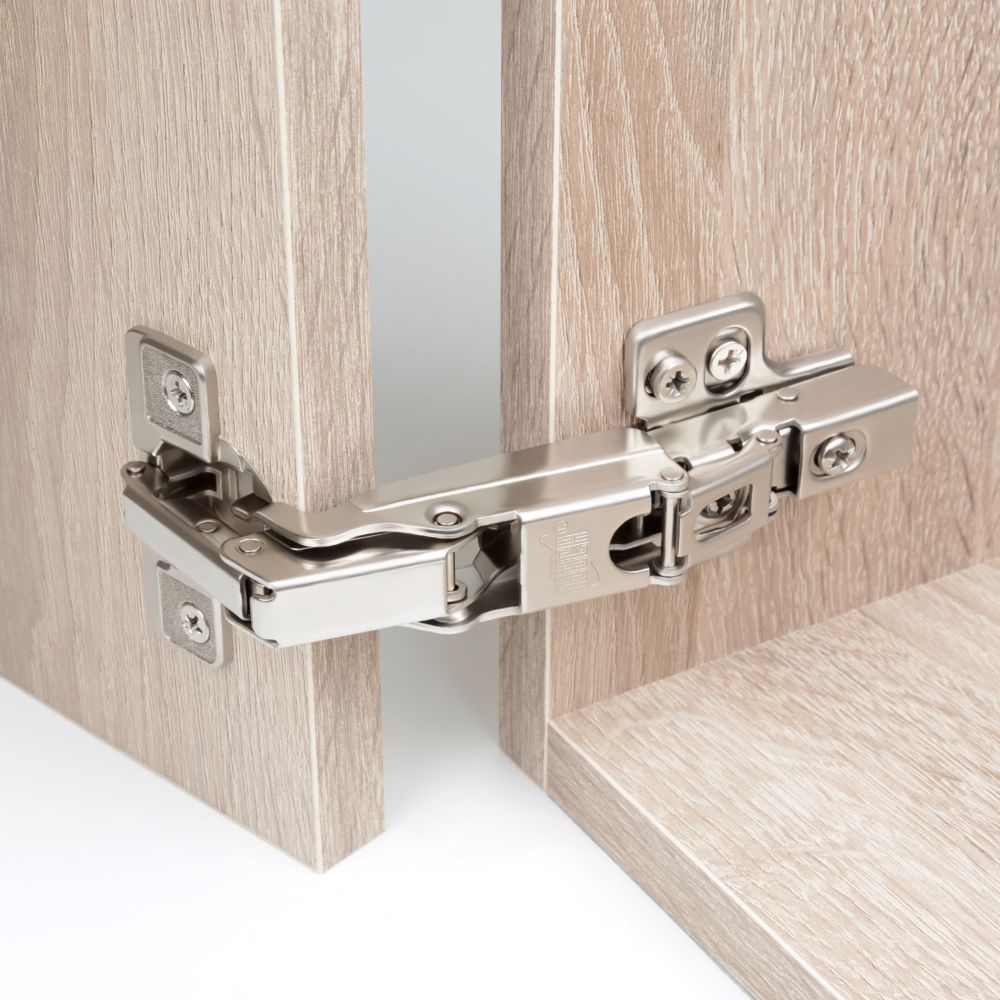

165° Degrees/D12 Mounting Plate

Opening: 165°
Plate type: Two holes 3D
Height value: 0,3,5mm
Mounting dimension: 37mm

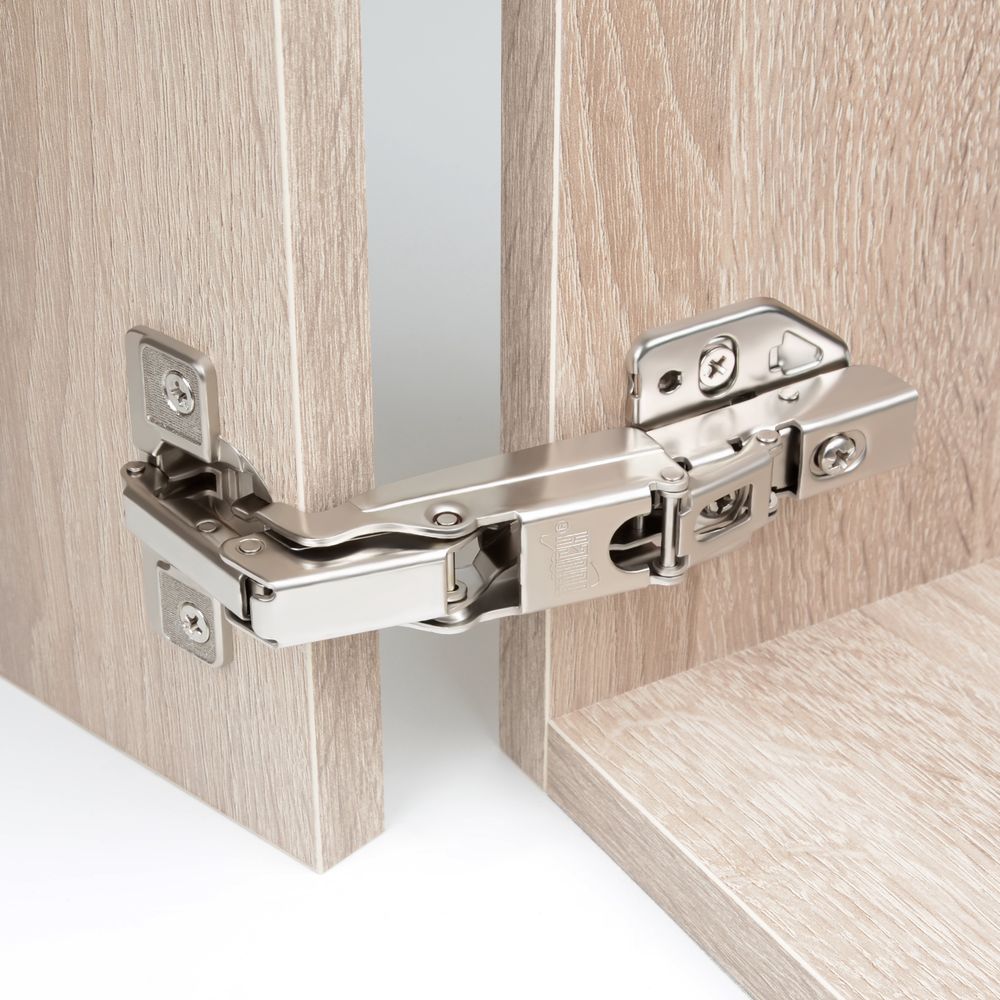

165° Degrees/D02 Mounting Plate

Opening: 165°
Plate type: Two holes 3D
Height value: 0,3,5mm
Mounting dimension: 37mm
