TCH-11501 SERIES

Slid on Push to Open Hinges

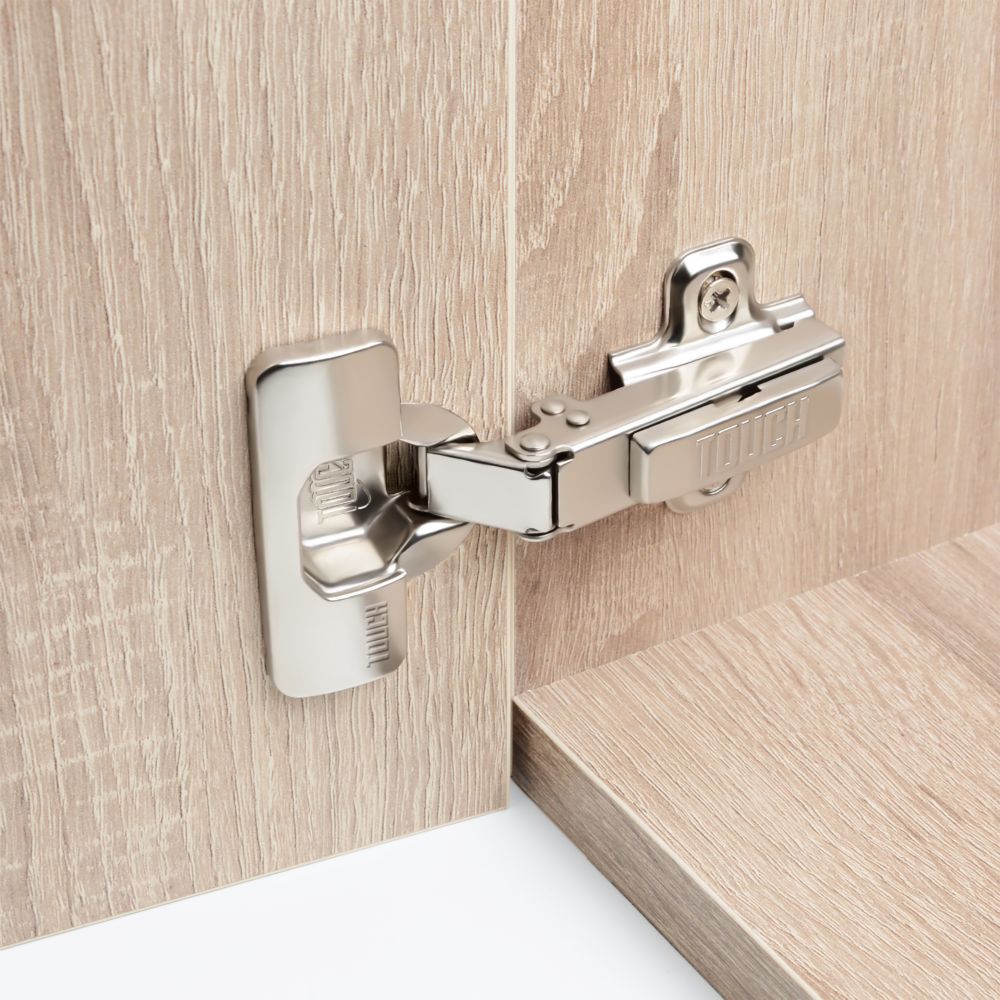

TCH-11501/B02 Mounting Plate

Plate type: Two holes
Height value: 0,2,4mm
Mounting dimension: 37mm

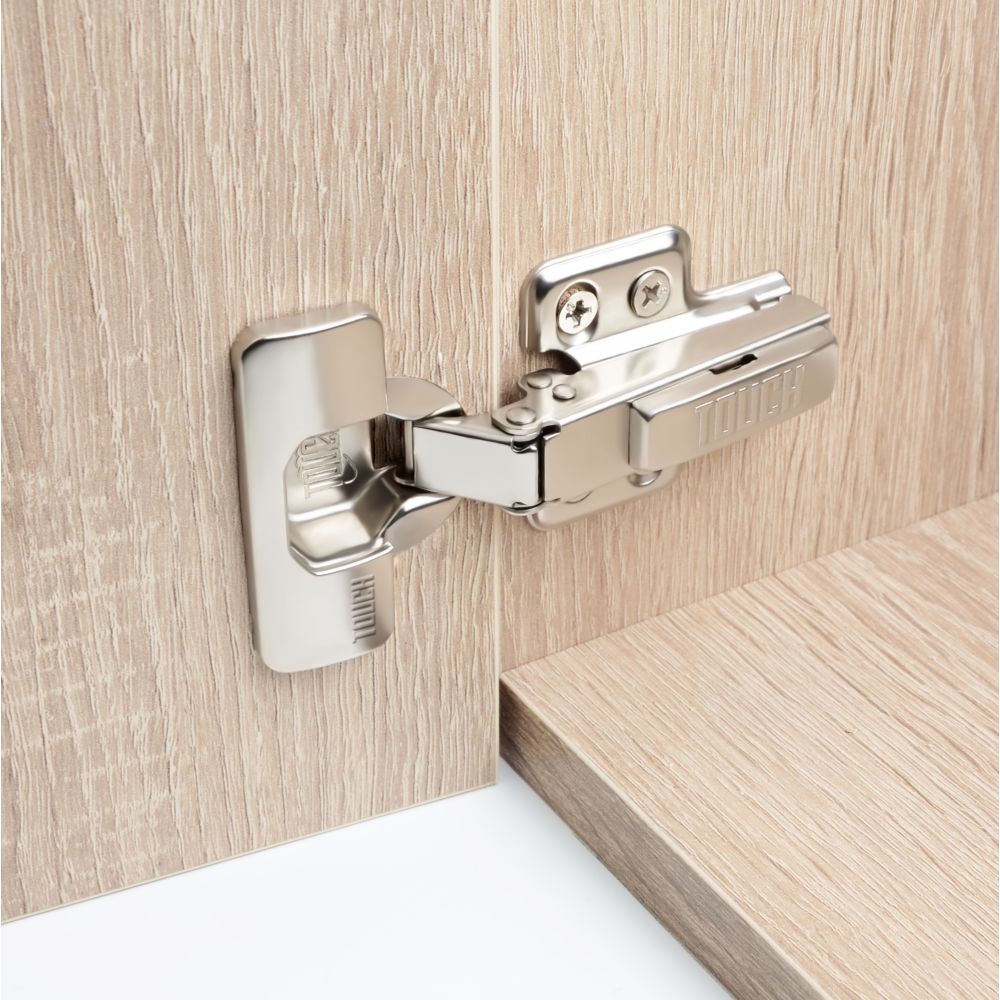

TCH-11501/B04 Mounting Plate

Plate type: Four holes
Height value: 0,2,4mm
Mounting dimension: 23-37mm

TCH-11501/B134 Mounting Plate

Plate type: Four holes
Height value: 0,2,4mm
Mounting dimension: 13-27mm

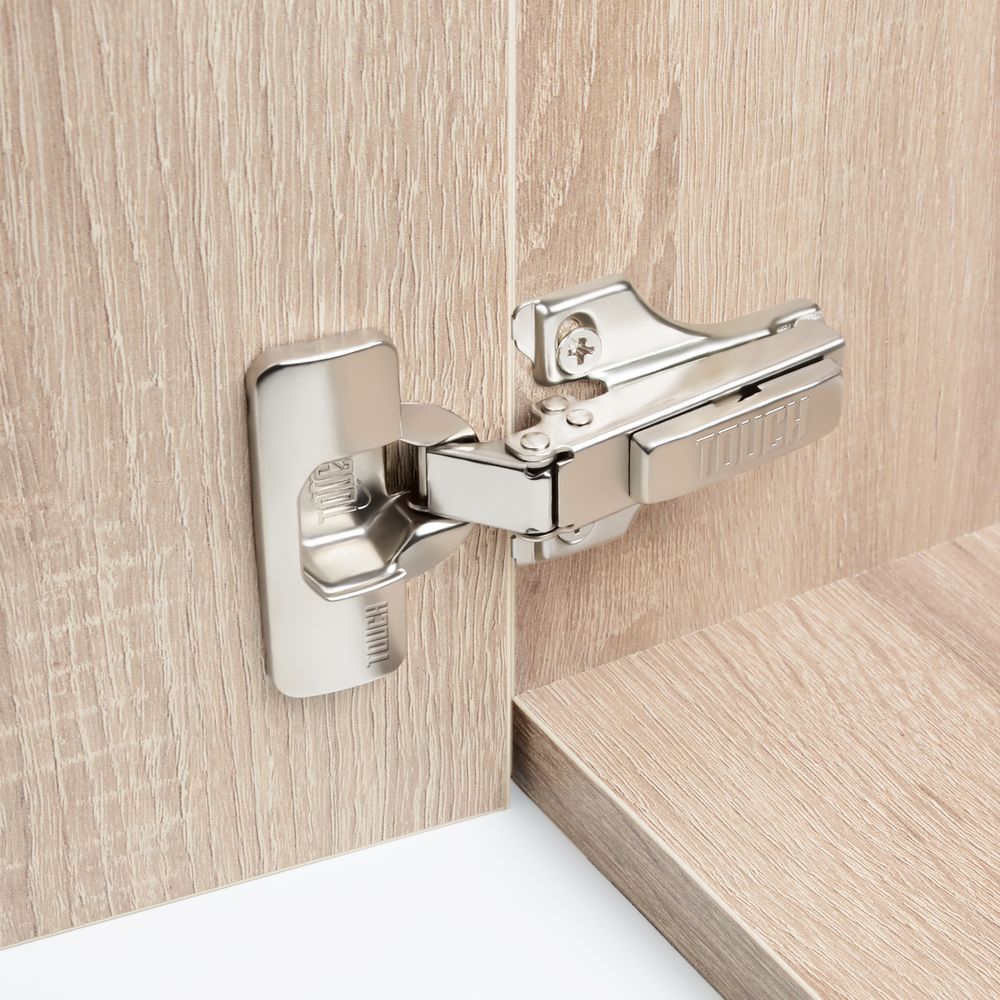

TCH-11501/F02 Mounting Plate

Plate type: Two holes face frame
Height value: 0,2,4mm
Mounting dimension: 10mm

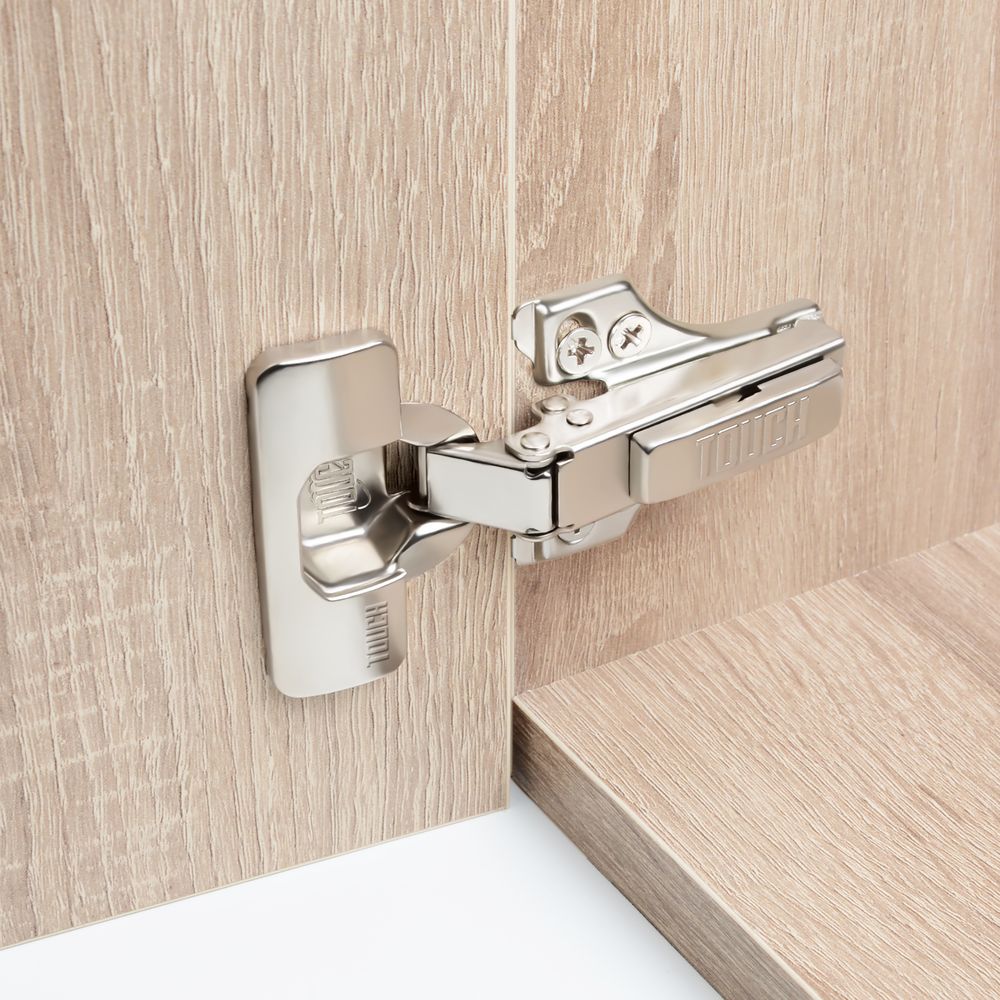

TCH-11501/F04 Mounting Plate

Plate type: Four holes face frame
Height value: 0,2,4mm
Mounting dimension: 10-20mm
