TCH-12201 SERIES

Clip on Soft Closing One Way Aluminum Frame Hinges

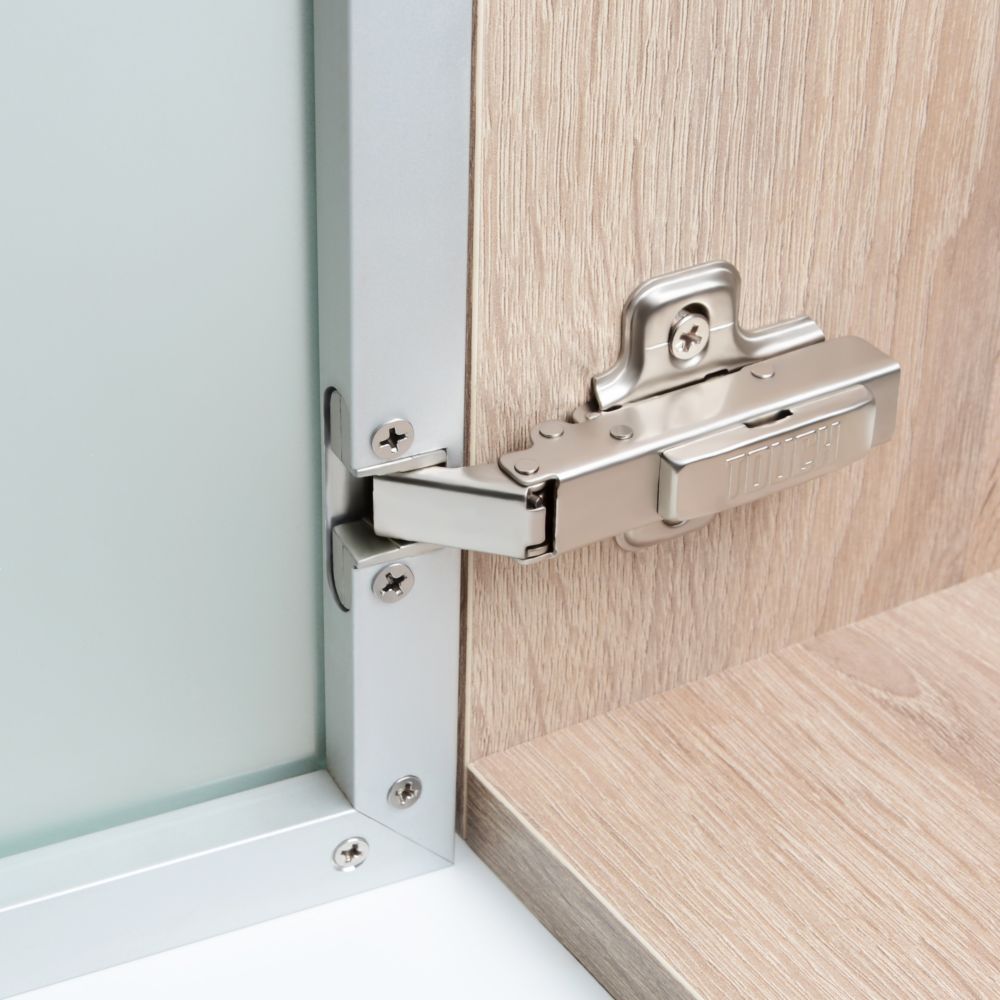

TCH-12201/B02 Mounting Plate

Plate type: Two holes
Height value: 0,3,5mm
Mounting dimension: 37mm

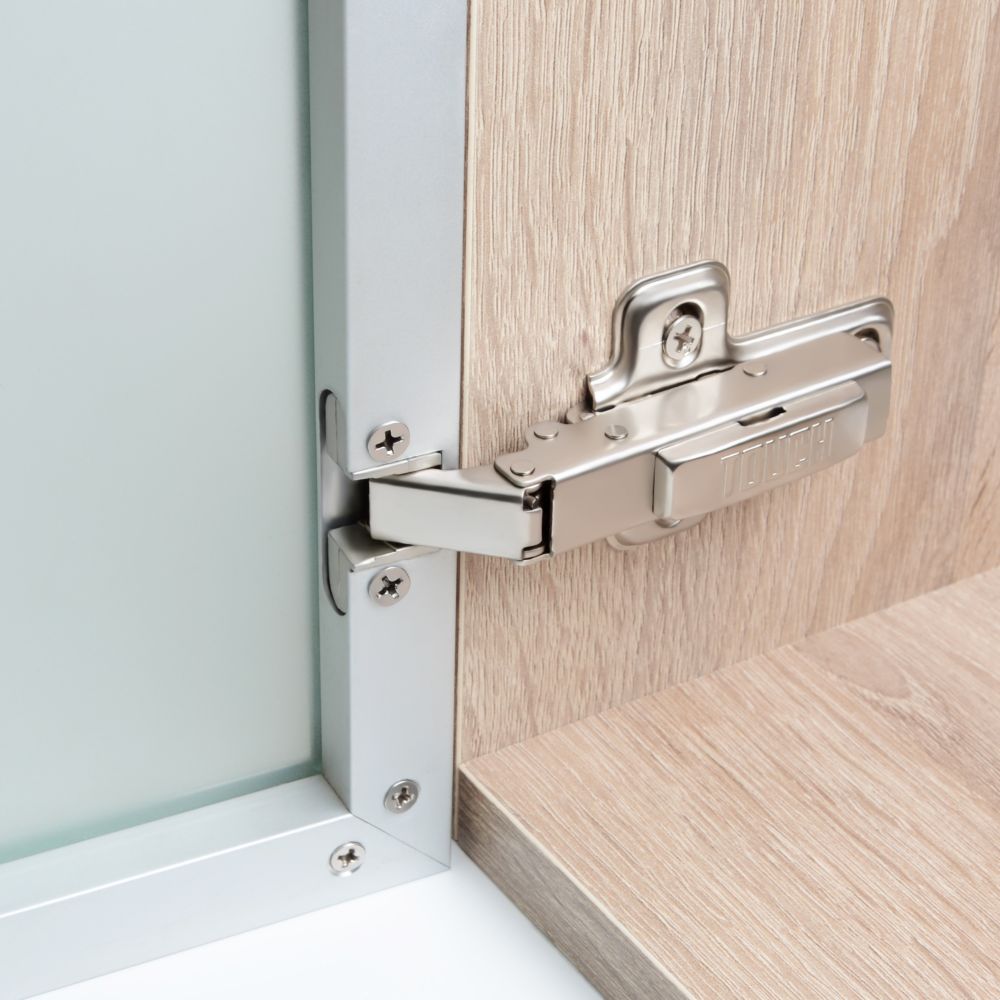

TCH-12201/B03 Mounting Plate

Plate type: Three holes
Height value: 0,3,5mm
Mounting dimension: 37-77mm

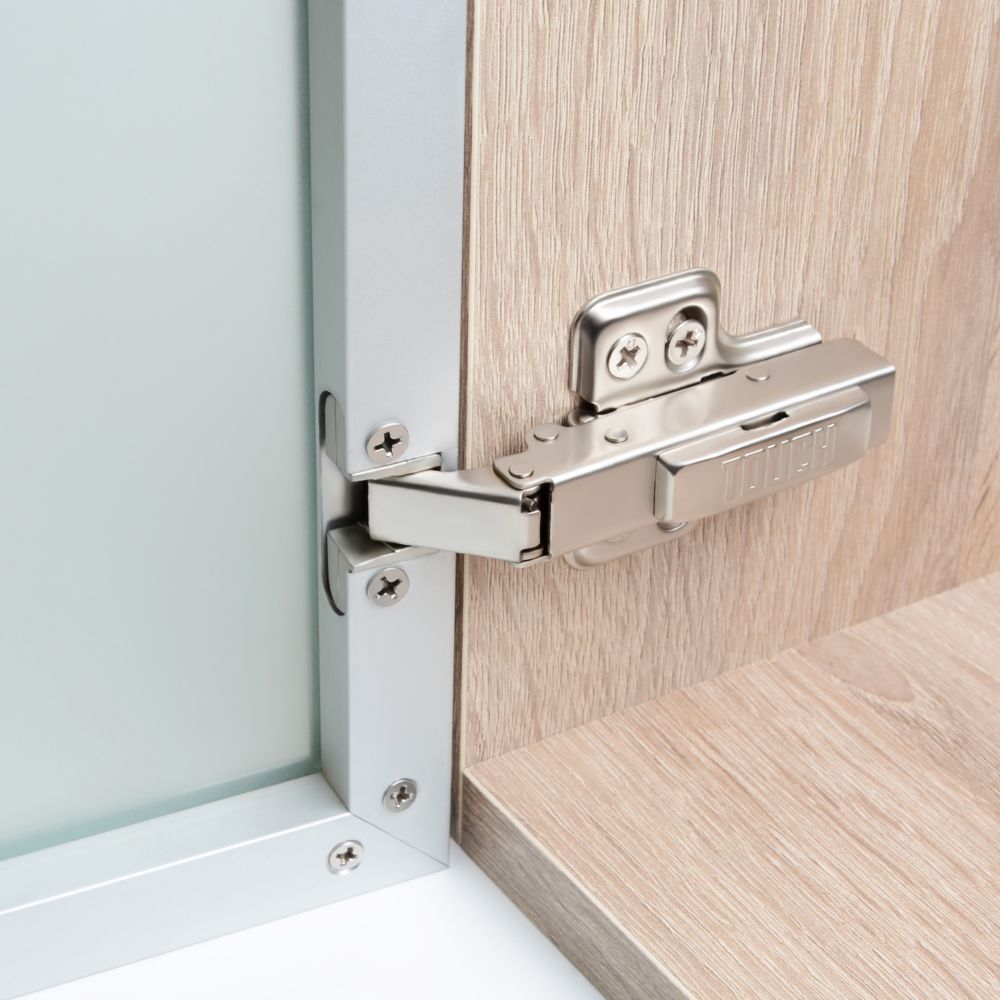

TCH-12201/B04 Mounting Plate

Plate type: Four holes
Height value: 0,3,5mm
Mounting dimension: 25-37mm

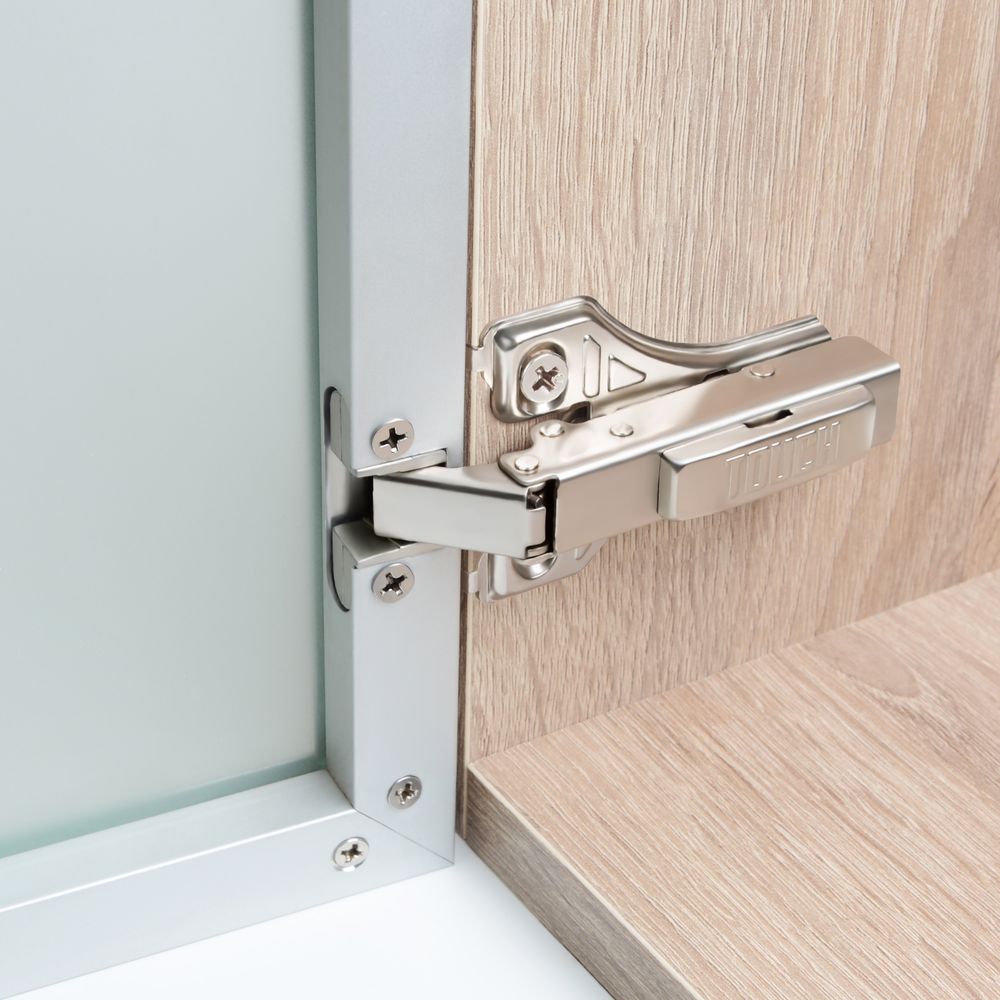

TCH-12201/F02 Mounting Plate

Plate type: Two holes face frame
Height value: 0,3,5mm
Mounting dimension: 10.5mm

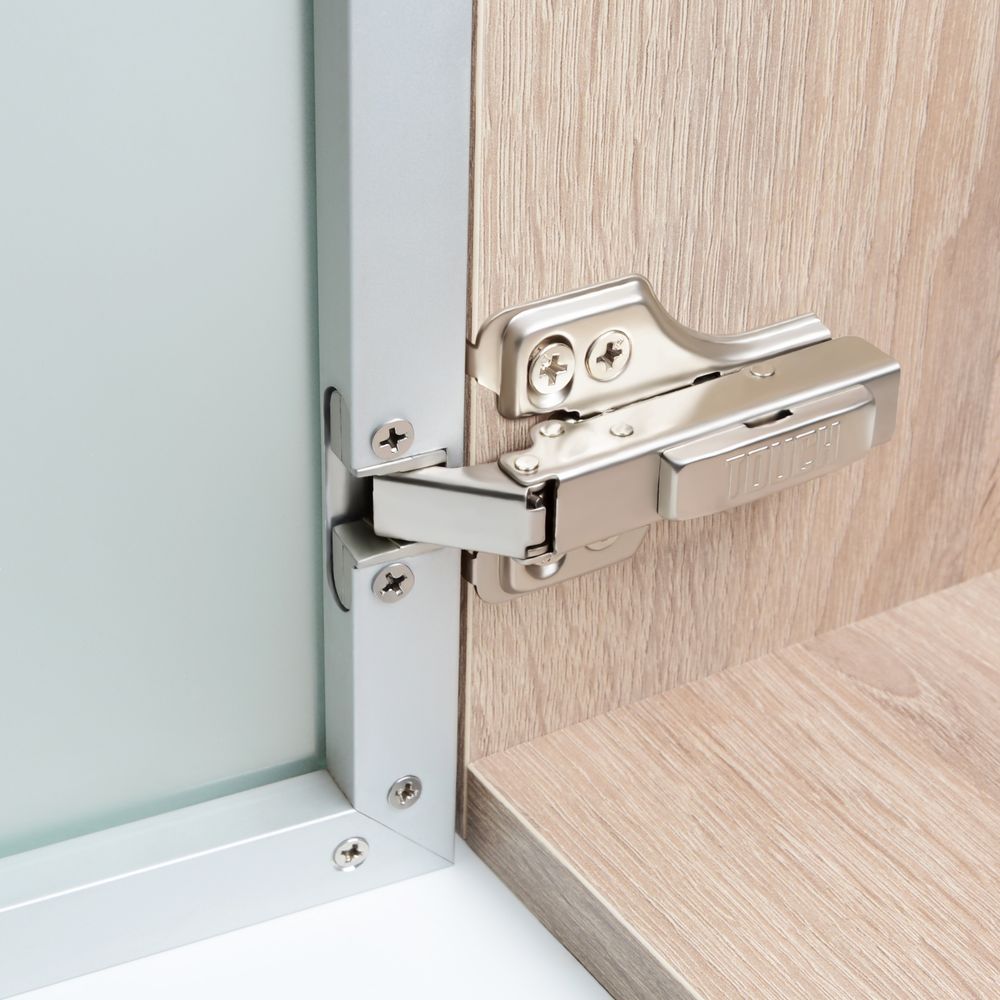

TCH-12201/F04 Mounting Plate

Plate type: Four holes face frame
Height value: 0,3,5mm
Mounting dimension: 10.5-23.5mm

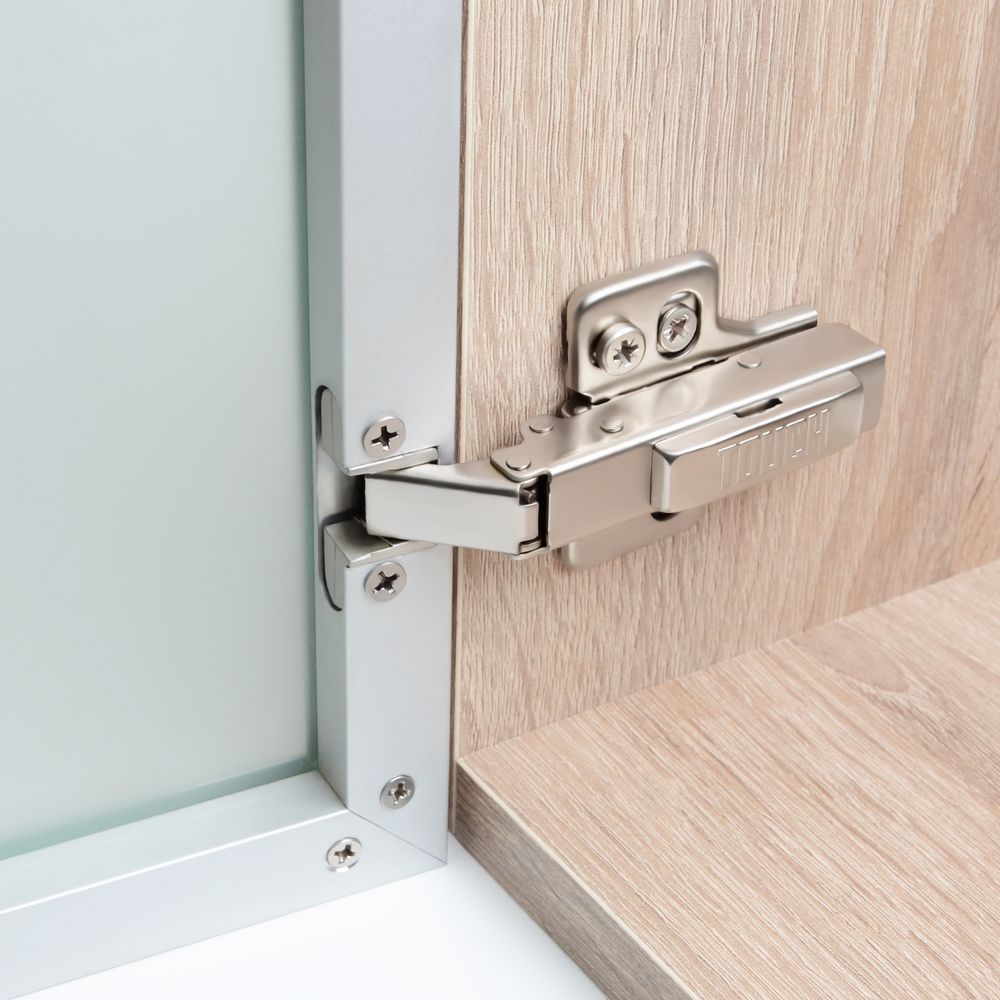

TCH-12201/D12 Mounting Plate

Plate type: Two holes 3D
Height value: 0,3,5mm
Mounting dimension: 37mm

TCH-12201/D02 Mounting Plate

Plate type: Two holes 3D
Height value: 0,3,5mm
Mounting dimension: 37mm
